Lab Dental Vacuum Fomer Mini Size Dental Vacuum Forming Machines

Dental lab use dental vacuum fomer high quality mini size dental vacuum forming machines

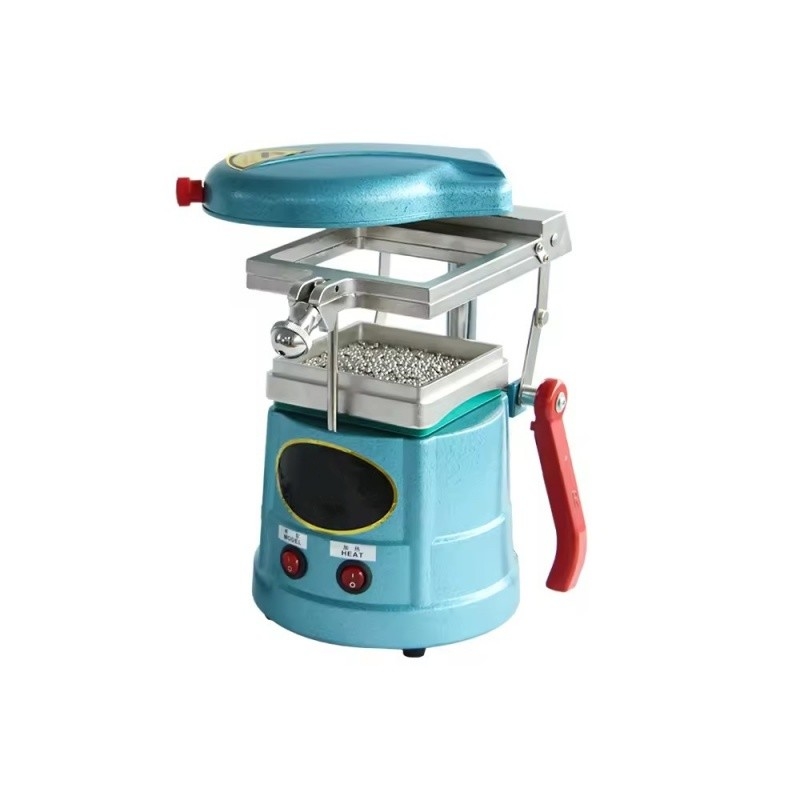

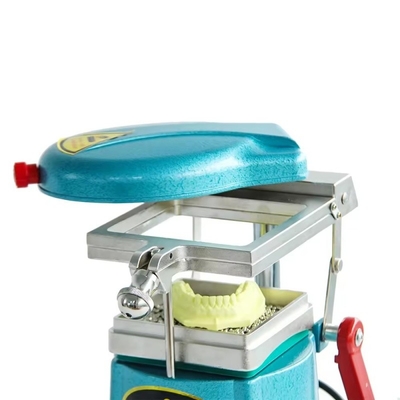

Dental Vacuum Forming Machine is specially designed for dental applications.
Our efficient portable unit delivers powerful suction and the highest level of performance, while its compact design saves you precious working counter space.
The motor of our new vacuum former is strategically placed below its perforated stage, which creates a direct downward suction, ensuring the utmost precision.
Durable and user-friendly, our Vacuum Forming Machine will withstand years of rigorous use and prove to be an indispensable tool for any dental office.

Features of dental vacuum forming machines

Details of dental vacuum forming machines
Remain transparent orthodontic appliances or without clasp , beautiful, wear comfortable, remain stable, and simple production by the majority of dentists welcome,Different from the first use of the tool : plastic sheet vacuum forming machines and special . Hard plastic sheet used in orthodontics , the choice of 0.8mm ~ 1.5mm.
1,get an press mould
2, filling gypsum, plaster casts upon dry dressing models ,
remove the bottom part of the palate and tongue should be the best it into a "U" .
3, Place the slices on a molding machine , clamping , jumping heated place.
Then take the model into the vacuum forming machine vacuum suction machine .
4, slices of hard vacuum machine heater heating , let depression about 2 cm .The deeper the precess,the holder will be thinner .Put it down on the model until it is fully in place.
5, vacuum suction machine for 15-20 seconds to ensure molding. Remove the heater , which will be cool to remove it die .
6, Use scissors to trim off the excess , or burs directly along the gingival margin under 2 ~ 3mm under its grinding, trimming the edges , reserves the gingival margin 0.5 mm
7, braces after pruning is completed, the braces placed on the model again to check fit . Such an
orthodontic retainer will be made , and if that edge is not close together, you can use alcohol lamp bake it, inward until close together. The same way, the choice of different thickness and hardness of the plastic sheet can be made whitening dentures , bruxism pad.
User's Manual of dental vacuum forming machine
1. Plug in the power plug 220V/50Hz, 110V/60Hz to check whether the forming motor and electric heating tube are working normally.
2. Rotate the upper cover (both left and right) by 90°, put the required diaphragm between the upper and lower casings, and pull down the ball head rod to clamp it. Reset the upper cover, press the lifting wrench to raise the sleeve frame to the working height, (the upper part of the spindle has a limit pin), at the same time, place the packaged product in the center of the screen plate, and turn on the heating switch.Heat the film, when the wax is heated below the lower frame plane 1CM (about two or three minutes). Turn off the heating switch,put the frame down, and turn on the vacuum motor at the same time. After the package is formed, it can be removed.
3. Purpose and usage of random steel balls:Remove the aluminum box, place the model in the middle, and then use steel balls to bury the part that does not need to be formed,and then put it on the machine table.
