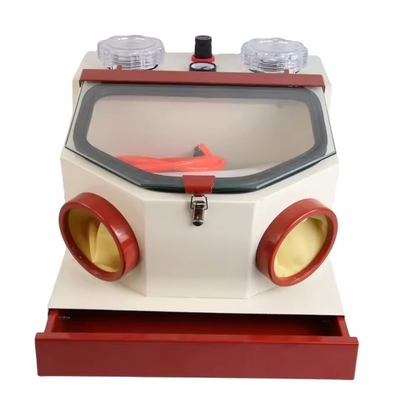

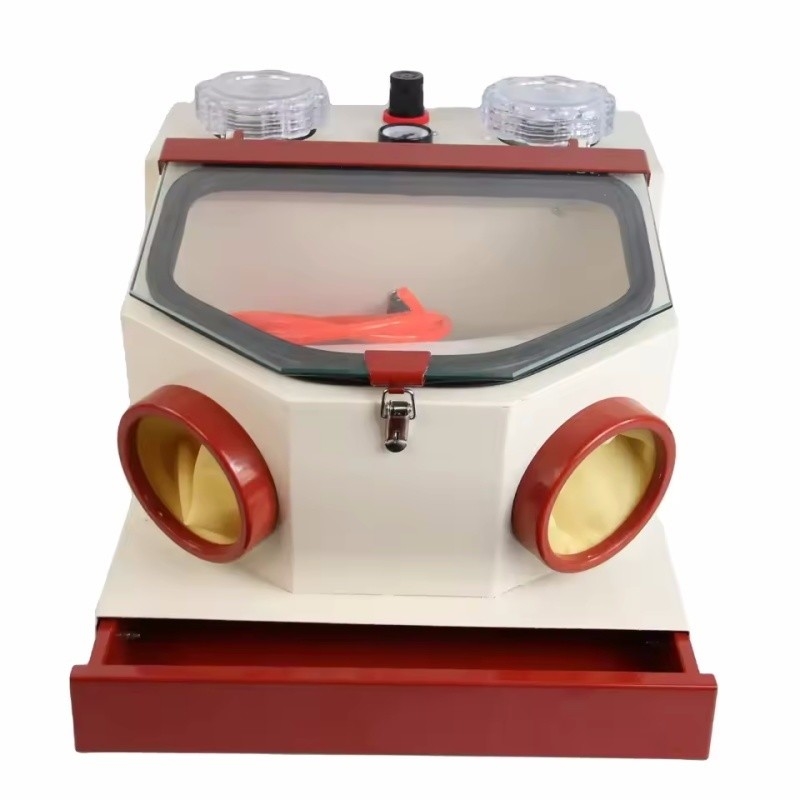

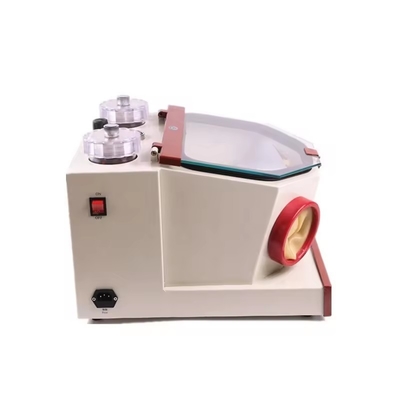

Large Window Twin Pen Dental Sandblaster With Drawer Powerful Dental Lab Equipment

Powerful dental equiment dental lab sandblaster LED light large window twin pen dental sandblater with drawer

Dental sandblasting machine features large viewing window, two pencils for media of different sizes and hardness, transparent sand bottle for observing the state of sand during sandblasting. It also features strong sandblasting power, smooth and accurate operations, and low maintenance.

Features of dental sandblasting machine

Parts Included
Manual × 1
Nozzle × 3
Lighting Tube × 1
Fuse × 2
Air Pipe × 1
Dust Pipe × 1
Aluminum oxide × 1
Korean pencil × 2 (Optional)
Korean nozzle × 2 (Optional)

Installation method of dental sandblasting machine

1. Poor sand production. Please check if the pressure reaches 4kg or above, adjust the pressure regulating valve first, and then check if there is too much or too little sand poured into the container. When the pressure gauge shows pressure but the pen does not sand, it is already blocked. Please unscrew the locking nut in front of the pen holder for cleaning, then press the foot switch to supply air, and finally tighten the locking nut.
2. During the use of the equipment, it is necessary to pay attention to the cleaning of dust at all times, otherwise it may cause poor contact of the electrical parts and affect normal use.
3. The amount of sand in the sand storage tank should not exceed half of the tank's capacity to achieve the best results.
4. Used sand should not be reused to prevent blockages in the air path

Usage of dental sandblasting machine

1. Firstly, tighten and secure each pipe joint.

2. Insert the power cord and foot switch cord into their respective sockets, connect the power supply,

3. Unscrew the two sand cup covers and pour in sand, preferably at half the height of the jar, otherwise it will affect the sandblasting effect.

4. Step on the foot switch, adjust the pressure regulating valve, and the machine can only
operate when the pressure is greater than 4 kg. Adjust the directional control to sand the left and right pens.

5. When cleaning the sand inside the machine, unscrew the screw directly below and lift the machine upwards. The sand will naturally flow out from the screw hole.



Cautions:
1.While changing sand,please clean the top of the bottle and the thread of the lid carefully with a brush, make sure the lid is tightly closed.
2.Sand used in the bottle must be 120 meshes.
3.The nozzles are consumable accessories, please replace them after they are worn out.
4.When using the sandblaster, avoid using the foot switch while operating the directional valve to prevent sand from entering the directional valve.
5.When the air tube is jammed, please remove the air tube which connects to the bottle, clean the tube with air.
6.There is a build-in pressure limit valve in the sandblaster, when the pressure gauge shows 4-5, the air releases automatically in order to protect the machine and the user.
